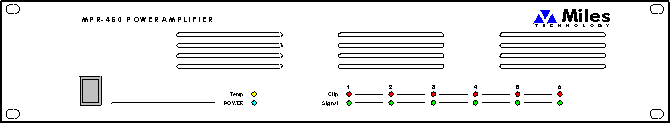

Click for Line Drawing
Click Here for BIG Pic
To Back Panel

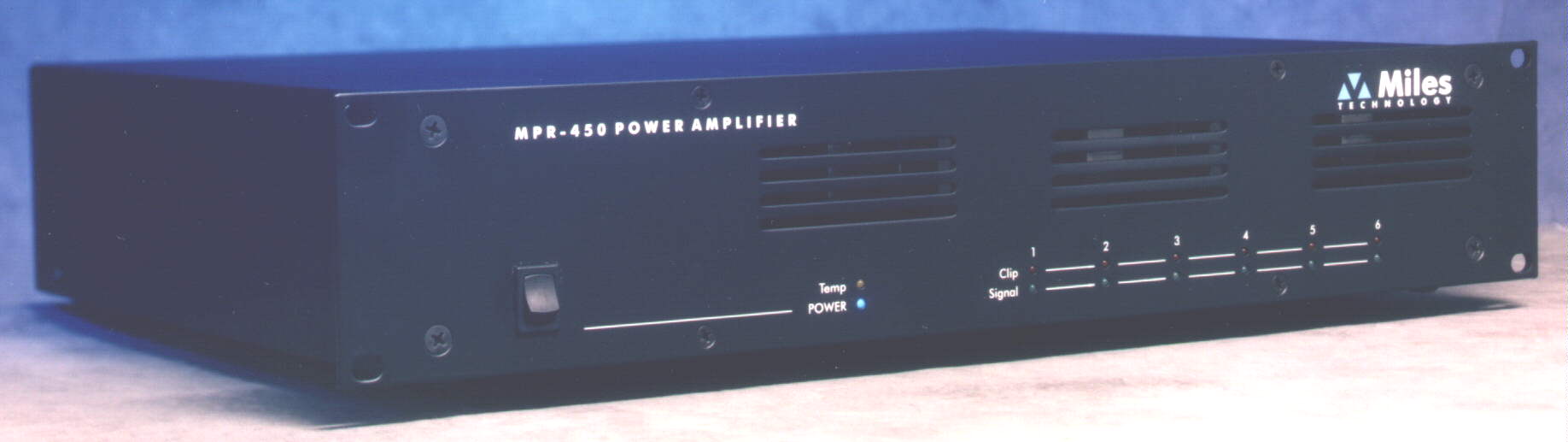

MPR-450 Six-Channel Power Amplifier

The Miles Technology MPR-450 proves that all amplifiers are not created equal. Innovation and attention to detail make this unique amplifier highly reliable and sonically accurate.

The MPR-450 is perfectly suited for A/V and multimedia systems, distributed sound, professional surround systems, commercial theater surround, installed home theater, and other multichannel applications where accurate sound, robust performance, and high reliability are desired. It is designed and built for continuous, demanding use.

Six independent channels deliver in excess of 450 continuous watts with audiophile fidelity. Each pair is bridgeable with the flip of a switch for higher power with three, four, or five channels.

Separate gain controls for each channel of the MPR-450 allow precise level adjustment for each loudspeaker. Their position on the back panel prevents unauthorized changes.

The MPR-450's straight-path design is the essence of simplicity. It yields clean, accurate, and dynamic sound. The signal source is reproduced exactly as intended.

A heavy-duty, high-energy R-core power transformer provides exceptional efficiency. This robust power supply, in combination with a special proprietary design, automatically sends extra power to channels where it's most needed.

Audiophile-quality sound is assured with a linear, straight-path, low-impedance design. The massive power supply is closely coupled to the outputsCdistances are short and conductors are large. This high-current supply busing provides rock-solid power at each output stage.

The discrete circuit topology with high-power metal output transistors ensures maximum reliability and sonic integrity.

Large internal heatsinks, direct-contact transistor mounting, and active SOA protection make the MPR-450 thermally efficient and impervious to short circuits. With prolonged operation at full power, the variable-speed, super-long-life fan keeps the MPR-450 running cool.

Made with pride in the U.S.A., the Miles Technology MPR-450 is backed with our comprehensive three-year warranty.

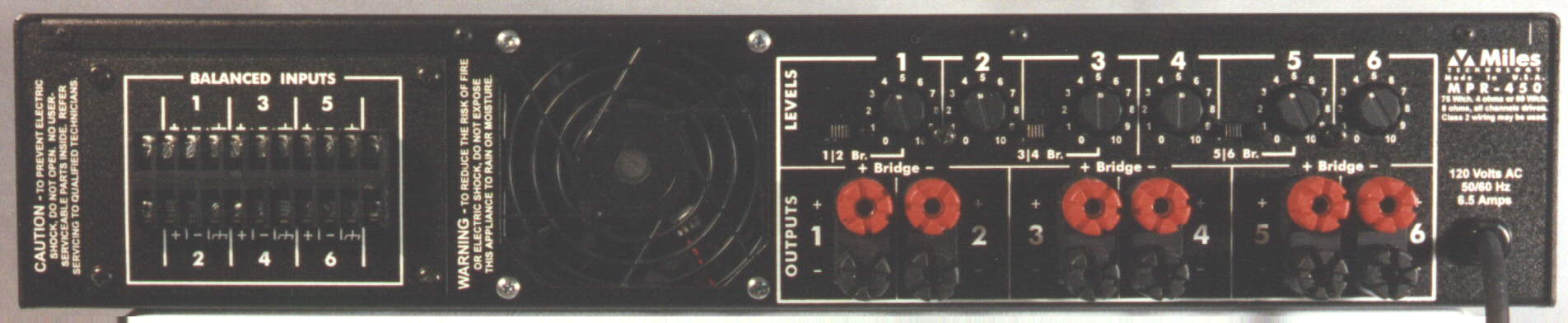

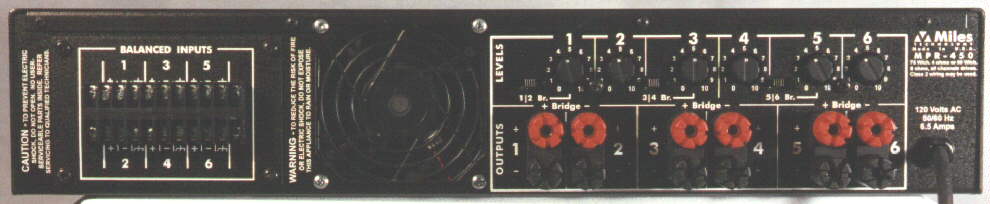

Back Panel

Click for Line Drawing

Click Here for BIG Pic (81k)


MPR-450 Specifications
Dynamic Output Power, 8 ohms: 6 channels: 100 W each
Continuous Output Power

8 ohms: 1 channel: 90 W 2 channels: 75 W 6 channels: 60 W each
4 ohms: 1 channel: 130 W 6 channels: 75 W each
8 ohms bridged: 1 pair: 250 W 3 pairs: 150 W each
Load Impedance Drives any load; 4 ohms to 8 ohms recommended. Bridged: 8 ohms recommended.
Frequency Response 20 Hz to 20 kHz, +0/-1 dB
THD + Noise >0.05%, 1 kHz, at rated output >0.15%, 20 Hz to 20 kHz, at rated output
Signal To Noise Ratio 20 Hz to 20 kHz, unweighted: >100 dB
Voltage Gain Each channel: off to 29 dB
Input Sensitivity 0.8 V for rated output
AC Power 120 V or 240 V, 50/60 Hz. Idle power: 36 W Typical use max. power: 780 W
Dimensions 3.5 in. x 19 in. x 12.7 in. (8.9 cm x 48.3 cm x 32.3 cm)
Weight 25 lbs (11.4 kg) shipping weight
Indicators Power: Blue light on the front panel indicates that the unit is powered. Signal Presence: Green lights on the front panel for each channel indicate presence of output signal. Peak: Red lights on the front panel for each channel indicate the onset of clipping (moderate intensity) and audible distortion (bright intensity). Temperature: Yellow light on the front panel indicates maximum operation of the cooling system.
Cooling System Forced air on demand, intake from front vents. Long-life (rated over 20 years operation at full speed), low-noise fan. Temperature sensing at each heatsink. Normal: Fan idles at low speed. Warm Heatsink: Fan is triggered to high speed during high-level audio output at any channel. Hot Heatsink: Fan operates at full speed, and yellow temperature indicator lights, until heatsinks return to warm threshold.
Input/Output

Input Connectors: Balanced screw terminal connections. Also available: the MPR-450R has gold RCA input connectors. Input Impedance: 15K ohms differential Output Connectors: Heavy-duty binding posts/double banana jacks; accommodate up to 10-gauge cable. Output Impedance: 30 milliohms
Controls Power: Rocker switch on the front panel for turning the unit on/off. Gain Controls: Controls on the rear panel allow the gain of each channel to be set independently. Bridging: Three switches on the rear panel allow each pair of channels to be bridged for a single channel with greater output power.

Note: 0 dBu = 0.775 V rms
